An overview of throne

overview.Rmd

Welcome to throne! This vignette provides a general overview of the aims and functionality of this package as well as links to subsequent vignettes including details on each of the steps of the process.

The aim of throne.

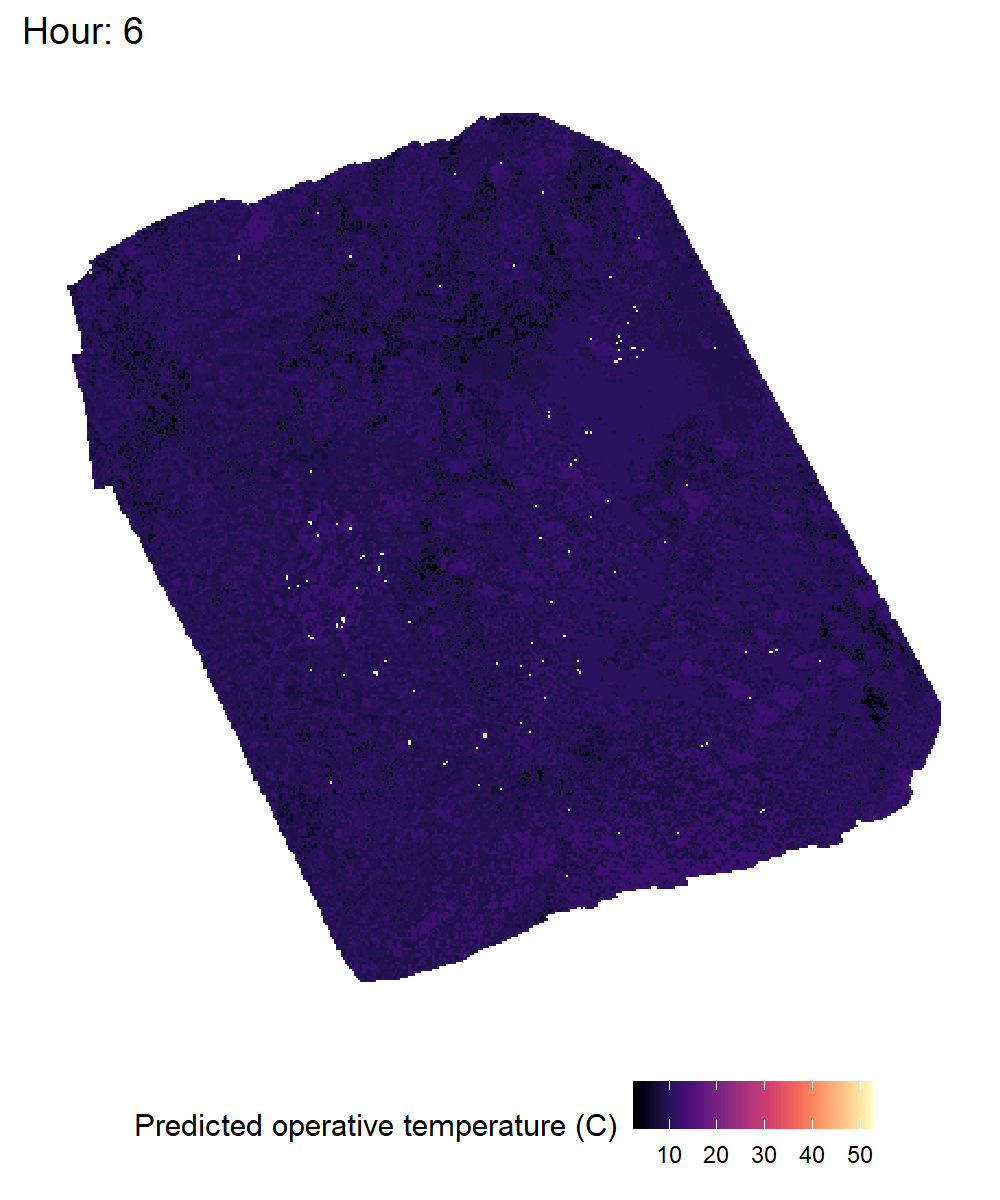

The overall aim when using the throne package is to obtain a spatio-temporally complete prediction of the thermal landscape of an area of interest. By thermal landscape, we refer to a data set that includes operative temperature measurements in a specified area across multiple moments in time. To generate these predictions, throne integrates spatially complete but temporally discrete thermal data collected via aerial photogrammetry using thermal imaging drones (hence throne), with spatially discrete but temporally complete operative temperature data collected via operative temperature models (OTMs). Generating spatio-temporally complete thermal landscapes allows users to obtain a characterization of the thermal properties of study area at an unprecedented level of detail. Below is an example of the final output of the throne package, a predicted thermal landscape over an area of study across all times for an entire day:

The throne workflow

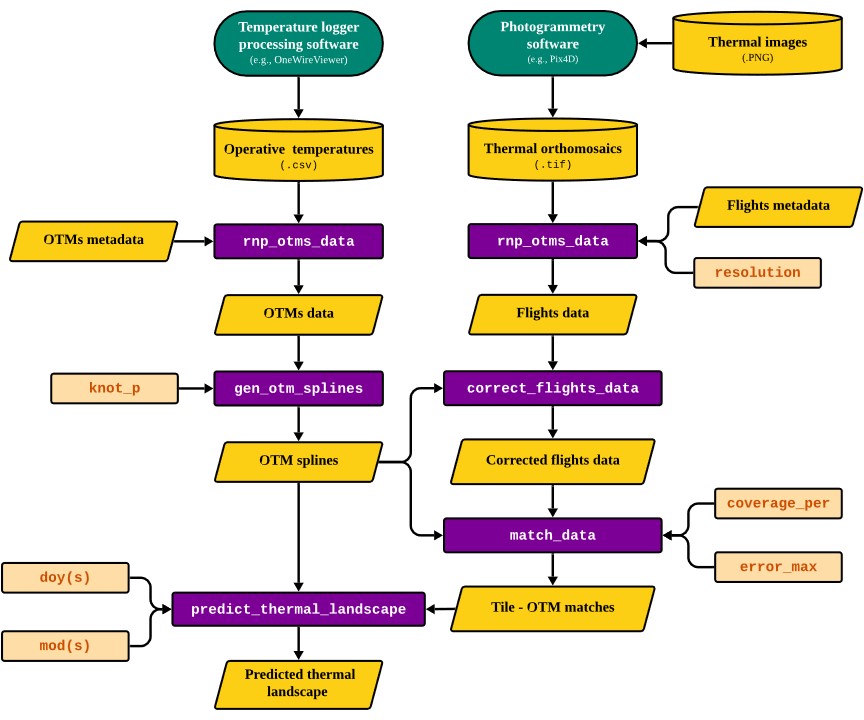

Below is a diagram of the entire workflow of the throne package. The entire process is divided into 8 steps that are performed in external processing software and in R:

The steps of the workflow are discussed in the following sections:

1. Collect & process thermal images

The first step is to collect thermal images using a thermal imaging drone. To achieve this, the users will need to:

  1. Acquire a thermal imaging drone.
  2. Plan and conduct flights with the drone multiple times over an area of interest.
  3. Process the thermal imagery using a photogrammetry software to obtain a thermal orthomosaic (i.e., a .tif file) for each flight.

Although this step is not done in R, the throne package documentation includes a step-by-step guide on how to perform each of these steps with recommendations on the kind of drone and photogrammetry software to use.

2. Collect OTM data

The second step is to collect operative temperature model (OTM) data. We elaborate on this here but in short, an operative temperature is a measurement of temperature performed inside of an object (i.e., a model) with zero heat capacity, the same size, shape and radiation properties as an organism of interest. Measuring operative temperatures (as opposed to air or surface temperatures) is crucial to accurately characterize the thermal environment an organism of interest is actually experiencing. To collect operative temperature model data we also provide a step-by-step guide that goes through the following steps:

  1. Build OTMs
  2. Program temperature loggers that will be contained inside of the OTM.
  3. Plan and conduct the deployment of OTMs in the field.
  4. Recover the OTMs and download the stored data into .csv files.

3. Read & process flight data

The third step is the reading and processing of thermal orthomosaics (.tif files that we call “flight data” for simplicity) into a data frame R environment. This process is achieved through the rnp_flights_data function. In this vignette we present how to use this function in detail.

4. Read & process OTM data

The fourth step is reading and processing of the data (in .csv format) collected by OTMs deployed in the field. To achieve this, the throne package includes the rnp_otms_data function. More details on how this function works can be found here.

5. Generate OTM spline models

The fifth step is the generation of cubic spline models from OTM data. This step is performed using gen_otm_splines function. In short, this function will fit a unique cubic spline model to each OTM for each day it was deployed in the field as a way to obtain a continuous characterization of its temperature fluctuation. In this vignette we detail how this function works and we provide some guidelines on how to choose the appropriate “wiggliness” of the resulting model through the knot_p argument

6. Correct flight data

The sixth step will be the correction of flights data using the newly created spline models using the correct_flights_data function. The need for this correction stems from the fundamental difference in the physical properties of the temperature measurements collected using an IR thermal imaging camera mounted on a drone and those collected using OTMs. The goal of this correction step is to transform thermal maps obtained from the flights into operative temperature maps. The logic of this process and details on how the correct_flights_data function works are described extensively in this vignette

7. Match flight and OTM data

The seventh step of the throne workflow is the matching of flights and OTM data. The goal of this step, which can be performed using the match_data function, is to link the thermal dynamics of each of the tiles (i.e., unique combination of x and and longitude values) of the study area to the thermal dynamics of an OTM. More details on how the matching process is performed can be found here.

8. Predict thermal landscapes

The last step is the prediction of thermal landscapes which can be done using the predict_thermal_landscape function. Combining the OTM spline models with the “matches” data sets, the predict_thermal_landscape function is able to produce a thermal landscape of the area of interest for any date and time of day for as long as the OTMs were deployed and recording in the field. We discuss the exact process to predict thermal landscapes here together with some insight on the high predictive accuracy of this method which we also discuss in the accompanying manuscript.

To start, in the next we introduce the field part of the throne workflow focusing on how to collect thermal imagery using a drone.
